| ○ | 精度等級：DIN 6 | ○ | 齒面硬度：55~60HRC | |||
| ○ | 齒型：標準全齒深齒 | ○ | 熱處理：高周波 | |||
| ○ | 壓力角：20° | ○ | 齒面精加工：研磨 | |||
| ○ | 左旋角：19.528° | ○ | 齒研基準面：軸徑 | |||
| ○ | 材質：20CrMnTi | ○ | 追加工：可 | |||
| I | J |
周長 L |
變位系數 X |
重量 Kg |
產品型號 Catalog NO. |
| 12 | 31.5 | 173.33 | 0.4065 | 0.4 | HGD180-M2-26-15 |
| 11 | 31.5 | 180.00 | 0 | 0.5 | HGD180-M2-27-15 |
| 12 | 31.5 | 193.33 | 0.4150 | 0.5 | HGD180-M2-29-15 |
| 12 | 31.5 | 233.33 | 0.3819 | 0.8 | HGD180-M2 35-15 |
| 14 | 40.0 | 193.33 | 0.4150 | 0.5 | HGD180-M2-29-20 |
| 14 | 50.0 | 220.00 | 0.3928 | 0.7 | HGD180-M2-33-20 |
| 8 | 50.0 | 240.00 | 0 | 1.2 | HGD180-M2-36-20 |
| 14 | 50.0 | 246.76 | 0.4209 | 0.9 | HGD180-M2-37-20 |
| 9 | 50.0 | 310.00 | 0.3540 | 1.8 | HGD180-M3-31-20 |
|

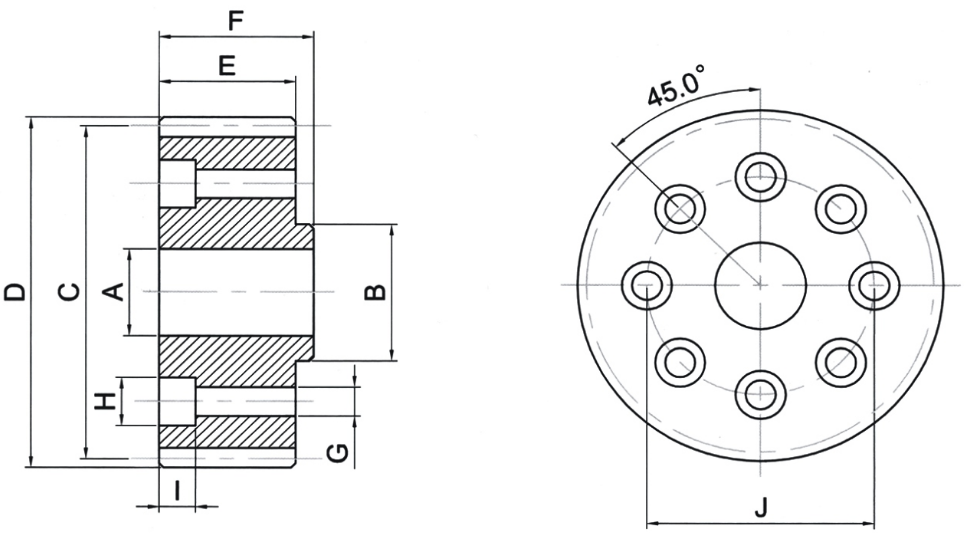

產品型號 Catalog NO. |
模數 M |
齒數 Z |
內徑 Bore |
轂徑 Hua dia |
節圓直徑 Pitch. dia |
外徑 Out. dia |
齒幅 Width |
總長度 Length |
G | H |
| Ah6 | Bh6 | C | D | E | G | |||||
| HGD180-M2-26-15 | 2 | 26 | 15 | 20.0 | 55.20 | 60.50 | 26 | 29.0 | 5.5 | 10 |
| HGD180-M2-27-15 | 2 | 27 | 15 | 20.0 | 57.29 | 61.29 | 30 | 33.5 | 5.5 | 10 |
| HGD180-M2-29-15 | 2 | 29 | 15 | 20.0 | 61.54 | 66.50 | 26 | 29.0 | 5.5 | 10 |
| HGD180-M2 35-15 | 2 | 35 | 15 | 20.0 | 74.30 | 79.50 | 26 | 29.0 | 5.5 | 10 |
| HGD180-M2-29-20 | 2 | 29 | 20 | 25.0 | 61.54 | 67.00 | 26 | 30.0 | 6.6 | 11 |
| HGD180-M2-33-20 | 2 | 33 | 20 | 31.5 | 70.00 | 75.00 | 26 | 30.0 | 6.6 | 11 |
| HGD180-M2-36-20 | 2 | 36 | 20 | 31.5 | 76.39 | 80.39 | 30 | 34.0 | 6.6 | 11 |
| HGD180-M2-37-20 | 2 | 37 | 20 | 31.5 | 78.50 | 83.50 | 26 | 30.0 | 6.6 | 11 |
| HGD180-M3-31-20 | 3 | 31 | 20 | 31.5 | 98.70 | 106.50 | 31 | 35.5 | 6.6 | 11 |
