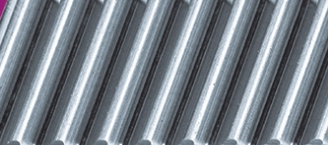

RHFQ-G系列斜齒齒條系列
產品特性
|
|
|
|
|
|
|
|
|
|
○ |
精度等級：DIN 7 |
|
○ |
齒面硬度：15~20HRC |
|
|
|
○ |
齒型：斜齒 |
|
○ |
表面處理：研磨 |
|
|
|
○ |
壓力角：20° |
|
○ |
齒面處理：精切削 |
|
|
|
○ |
材質：42CrMo |
|
○ |
熱處理：調質熱處理 |
|
|
|
○ |
右旋角：19° 31' 42'' |
|
|
|
|
|
|
|
|
|
|
|
|
機械尺寸
技術參數
單位/Dimension：mm
產品型號
Catalog NO. |
L |
L2 |
齒數
Tooth NO . |
A |
B |
B0 |
C |
D |
孔數
Hole NO. |
B1 |
G1 |
G2 |
F |
C0 |
E |
G3 |
總齒距誤差
PichError/ 300mm |
|
SSGH015-050 |
500.00 |
6 |
100 |
17 |
17 |
15.5 |
62.50 |
125 |
4 |
7 |
6 |
9.5 |
7 |
31.7 |
436.6 |
5.7 |
0.042 |
|
SSGH015-100 |
1000.0 |
6 |
200 |
17 |
17 |
15.5 |
62.50 |
125 |
8 |
7 |
6 |
9.5 |
7 |
31.7 |
936..6 |
5.7 |
0.042 |
|
SSGH020-050 |
500.00 |
8.9 |
75 |
24 |
24 |
22 |
62.50 |
125 |
4 |
8 |
7 |
11 |
7 |
31.7 |
436.6 |
5.7 |
0.044 |
|
SSGH020-100 |
1000.0 |
8.9 |
150 |
24 |
24 |
22 |
62.50 |
125 |
8 |
8 |
7 |
11 |
7 |
31.7 |
936.6 |
5.7 |
0.044 |
|
SSGH030-050 |
500.00 |
10.6 |
50 |
29 |
29 |
26 |
62.50 |
125 |
4 |
9 |
10 |
15 |
9 |
35.0 |
430.0 |
7.7 |
0.046 |
|
SSGH030-100 |
1000.0 |
10.6 |
100 |
29 |
29 |
26 |
62.50 |
125 |
8 |
9 |
10 |
15 |
9 |
35.0 |
930.0 |
7.7 |
0.046 |
|
SSGH040-050 |
506.67 |
14.2 |
38 |
39 |
39 |
35 |
62.50 |
125 |
4 |
12 |
10 |
15 |
9 |
33.3 |
433.0 |
7.7 |
0.048 |
|
SSGH040-100 |
1000.0 |
14.2 |
75 |
39 |
39 |
35 |
62.50 |
125 |
8 |
12 |
10 |
15 |
9 |
33.3 |
933.4 |
7.7 |
0.048 |
|
SSGH050-050 |
500.00 |
17.7 |
30 |
49 |
39 |
34 |
62.50 |
125 |
4 |
12 |
14 |
20 |
13 |
37.5 |
425.0 |
11.7 |
0.050 |
|
SSGH050-100 |
1000.0 |
17.7 |
60 |
49 |
39 |
34 |
62.50 |
125 |
8 |
12 |
14 |
20 |
13 |
37.5 |
925.0 |
11.7 |
0.050 |
|
SSGH060-050 |
500.00 |
20.9 |
25 |
59 |
49 |
43 |
62.50 |
125 |
4 |
16 |
18 |
26 |
17 |
37.5 |
425.0 |
15.7 |
0.055 |
|
SSGH060-100 |
1000.0 |
20.9 |
50 |
59 |
49 |
43 |
62.50 |
125 |
8 |
16 |
18 |
26 |
17 |
37.5 |
925.0 |
15.7 |
0.055 |
|
SSGH080-050 |
480.00 |
28.0 |
18 |
79 |
79 |
71 |
60.00 |
120 |
4 |
25 |
22 |
33 |
21 |
120.0 |
240.0 |
17.7 |
0.060 |
|
SSGH080-100 |
960.00 |
28.0 |
36 |
79 |
79 |
71 |
60.00 |
120 |
8 |
25 |
22 |
33 |
21 |
120.0 |
720.0 |
17.7 |
0.060 |
